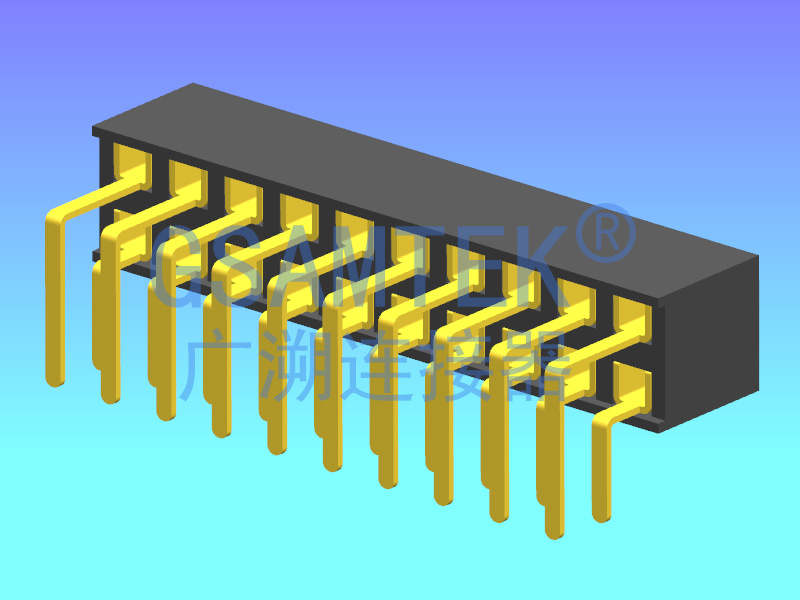

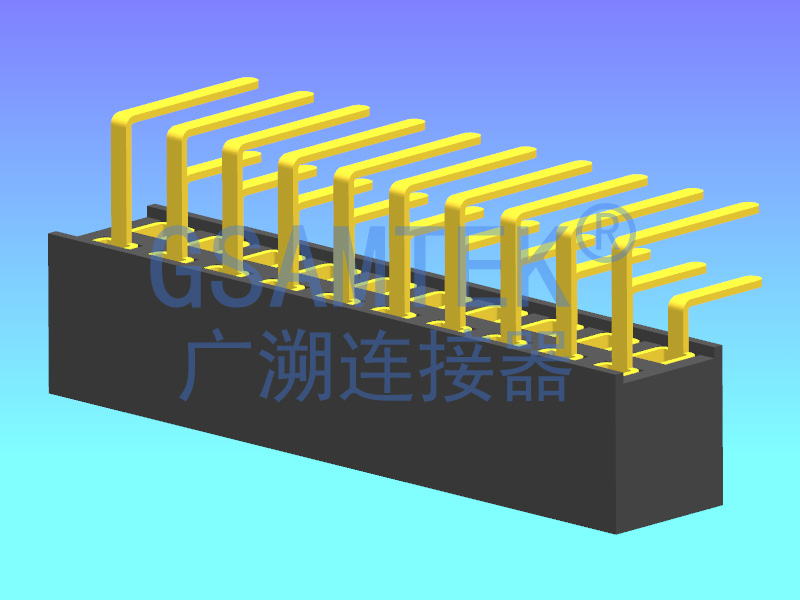

雙排90度排母 PH2.0 H4.3 U型 W4.0
產(chǎn)品分類：間距2.0mm
PH2.0排母：
價格：￥0.01~
簡介：
PIN 數(shù)：2*2P~2x40P
塑膠高 H：4.3mm
排 數(shù)：雙排、
折彎類型：90度
材 質：PA6T/PA9T/LCP
端子形狀：U型
詳細介紹
&
Material:
Contact Material: Brass/Phosphor Bronze
Contact plating: Au or Sn Over30-50u" Ni
Insulator Material: Black Polyester UL94V-0
Standard: PA6T/PA9T/LCP+30%G.F
Electrical:
Current rating: 3.0Amps/contact max.
Contact resistance: ≤20mΩ/contact
Insulation resistance: ≥1000MΩ at V=100V
Withstanding Voltage: 1000V AC/minute
Mechanical:
Operaing temperature: -40°C to +105°C
Wave soldering temperature: 250±5°C,10s
